Fixtured screwdriving systems

Fixtured screwdriver SEV

Fixtured screwdriving technology for hard to reach screwdriving locations

The fixtured screwdriver SEV allows process-reliable fittings at hard-to-reach locations. The closed design and wear-resistant surfaces ensure exceptionally long service lives and extended maintenance intervals even in dry running without oil. The SEV is available with pneumatic drive or EC motor.

Fixtured screwdriver SEV with vacuum WEBER
3D Preview 2D Preview
With automatic feeding system for screws and pins
For interference contours up to 150 mm
Access to even recessed and hard-to-reach screwdriving locations

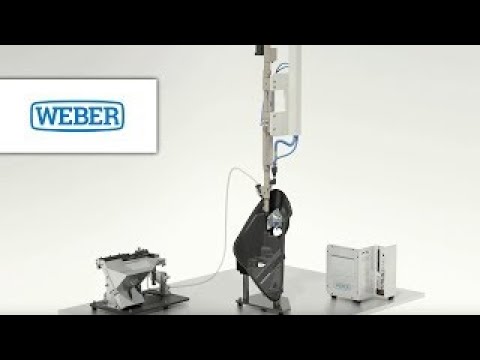

Swivel arm principle: Feeding during screwdriving
Customer-provided drives
YouTube

Information on processing of your data collected on this website in the U.S by YouTube:

By clicking on “I accept”, you also give consent to your data being processed in the U.S. in accordance with Art. 49 para. 1 s. 1 lit. a GDPR. The level of data protection under the GDPR cannot be guaranteed. This may for example mean that American authorities (in particular the intelligence services) are given access to your data. Legal protection options against this are currently very limited or even impossible. You can find further information in our Privacy Policy.

I accept

PGlmcmFtZSB0aXRsZT0iVmFjdXVtIHNjcmV3ZHJpdmVyIHdpdGggYXV0b21hdGljIGZlZWQgc3lzdGVtIFNFViB3aXRoIFpFTCBXRUJFUiIgd2lkdGg9IjY0MCIgaGVpZ2h0PSIzNjAiIHNyYz0iaHR0cHM6Ly93d3cueW91dHViZS1ub2Nvb2tpZS5jb20vZW1iZWQvaGVtLWxjQXBYZms/ZmVhdHVyZT1vZW1iZWQiIGZyYW1lYm9yZGVyPSIwIiBhbGxvdz0iYWNjZWxlcm9tZXRlcjsgYXV0b3BsYXk7IGNsaXBib2FyZC13cml0ZTsgZW5jcnlwdGVkLW1lZGlhOyBneXJvc2NvcGU7IHBpY3R1cmUtaW4tcGljdHVyZTsgd2ViLXNoYXJlIiByZWZlcnJlcnBvbGljeT0ic3RyaWN0LW9yaWdpbi13aGVuLWNyb3NzLW9yaWdpbiIgYWxsb3dmdWxsc2NyZWVuPjwvaWZyYW1lPg==

The open system of the fixtured automatic screwdriving system SEV allows you to integrate customer-provided drives. This makes it easy to integrate the SEV in existing assembly lines with existing drives and controllers. Subsequent conversion to WEBER components is possible at any time.

Features
Vacuum bit for fixing the screws during feeding
Swivel arm for short cycle times
Vacuum module
Features
  • Screwdriving spindle with vacuum technology that allows access to even recessed and hard-to-reach screwdriving locations
  • Suitable for automatic feeding
  • Versatile through modular design
  • Pneumatic or electric drive
  • For shank-heavy screws
  • For requirements of technical cleanliness with particulate reduction
Fixtured screwdriver SEV WEBER

Technical data Fixtured screwdriver SEV

Series 03 10 30 60 120
Torque range [Nm] 0,3 – 3 1 – 10 3 – 30 6 – 60 12 – 120
Max. rotation speed [rpm] 2.500 2.500 1.500 1.500 300
Head diameter [mm] 6,5 – 11 6,5 – 13 9- 24 9 – 24 9 – 24
Weight [kg] from 5 from 7 from 9 from 11 approx.16
Bit stroke (intern) [mm] 70 | 90 | 120 | 190 90 | 120 | 160 | 240 120 | 160 | 200 120 | 160 | 200 160 | 200
Axial force bit (1 | 3 | 6 bar) [N] 30 | 90 | 180 45 | 135 | 270 70 | 210 | 420 70 | 210 | 420 160 | 480 | 960 70 | 210 | 420**
Max. overstroke depending on head diameter [mm] 11 -18 | 7,4 – 38 | 24,4 – 68 | 89 – 126 4,5 – 33,3 | 2,3 – 63,3 | 42,3 – 103,3 | 89 – 126,4 89 – 126,4 2,5 – 42,2 | 42,5 – 82,2 | 42,3 – 84 2,5 – 42,2 | 42,5 – 82,2 | 42,3 – 84 2,5 – 42,2 | 42,5 – 82,2 | 42,3 – 84
Tool holding coupler 3/16″ 1/4″ 5/16″ 7/16″ 7/16″
* With direct drive and standard screwdriving head ass‘y
**Version LAF Low Axial Force Technical changes reserved.
