Process controller C50S

Tailored individuality

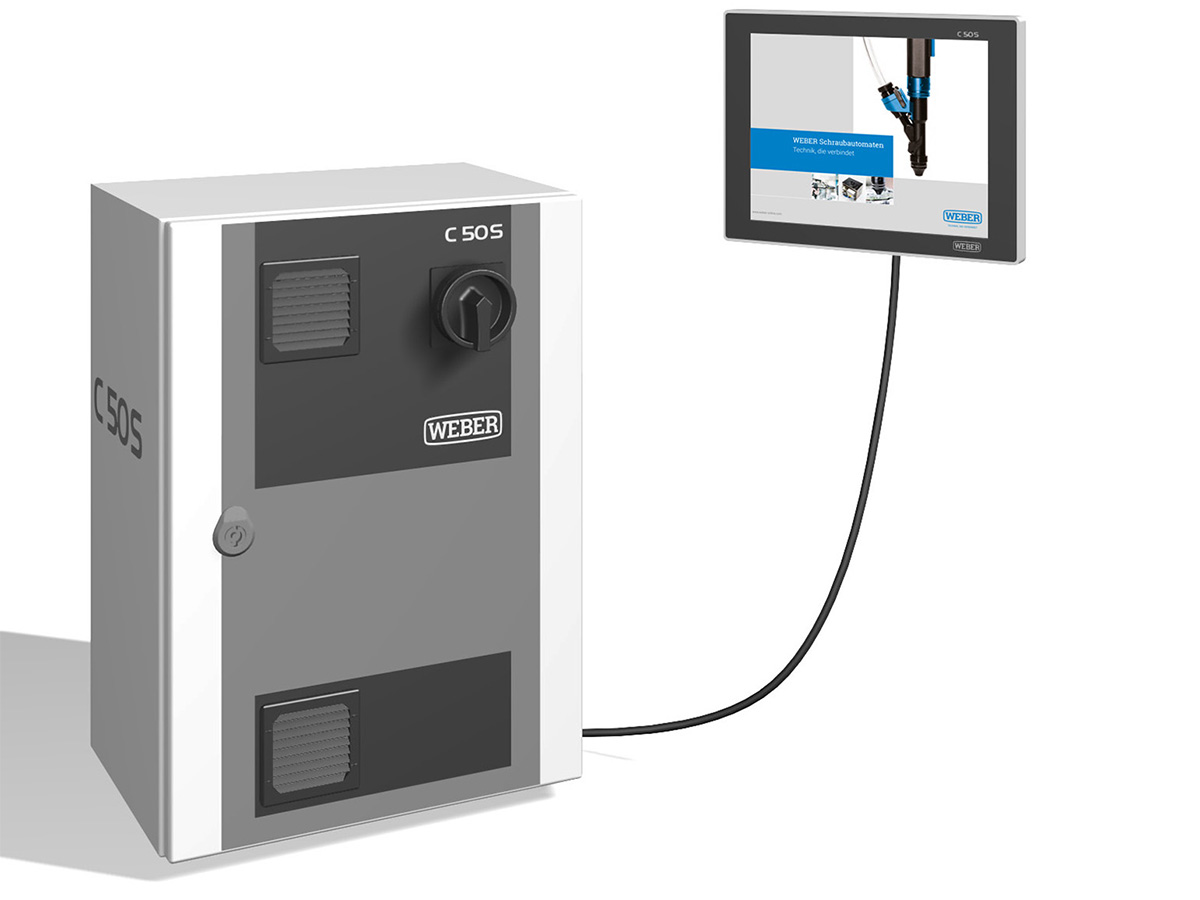

The C50S process control is used for individually configurable screwdriving processes. There are 255 selectable screwdriving programs available – custom programs can be completed via an open interface. Networking is realized via Ethernet with TCP/IP protocol. The sequences are visualized on an optional Touch-Panel or a Windows computer.

Control systems C50S WEBER Screwdriving control
3D Preview 2D Preview
Screwdriving process with flexible step programming
Individual process flow configurable with latest methods
Gradient screwdriving method (moment, depth), relative moment as well as M360° method
Individual export of parameters and results
For demanding applications
YouTube

Information on processing of your data collected on this website in the U.S by YouTube:

By clicking on “I accept”, you also give consent to your data being processed in the U.S. in accordance with Art. 49 para. 1 s. 1 lit. a GDPR. The level of data protection under the GDPR cannot be guaranteed. This may for example mean that American authorities (in particular the intelligence services) are given access to your data. Legal protection options against this are currently very limited or even impossible. You can find further information in our Privacy Policy.

I accept

PGlmcmFtZSB0aXRsZT0iUHJvemVzc3N0ZXVlcnVuZyBDNTBTIFdFQkVSIiB3aWR0aD0iNjQwIiBoZWlnaHQ9IjM2MCIgc3JjPSJodHRwczovL3d3dy55b3V0dWJlLW5vY29va2llLmNvbS9lbWJlZC9QZnRmY1pzakxUaz9mZWF0dXJlPW9lbWJlZCIgZnJhbWVib3JkZXI9IjAiIGFsbG93PSJhY2NlbGVyb21ldGVyOyBhdXRvcGxheTsgY2xpcGJvYXJkLXdyaXRlOyBlbmNyeXB0ZWQtbWVkaWE7IGd5cm9zY29wZTsgcGljdHVyZS1pbi1waWN0dXJlOyB3ZWItc2hhcmUiIHJlZmVycmVycG9saWN5PSJzdHJpY3Qtb3JpZ2luLXdoZW4tY3Jvc3Mtb3JpZ2luIiBhbGxvd2Z1bGxzY3JlZW4+PC9pZnJhbWU+

Detailed information about the screwdriving curves and characteristics can be output with the controller C50S. All relevant process signals are represented on any abscissae. Options for system diagnosis, a logbook, and a backup and help function are also available.

Features
  • 255 programs
  • Five results selectable from any stage
  • Statistical functions for process quality assessmen
  • Advanced screwdriving methods: gradient screwdriving (torque, depth), relative torque and M360 each with up to 25 screw stages
  • Digital and analogue depth measurement to optimize screwdriving processes
  • Process parameters set via customer interface
  • Advanced process analysis and diagnostics: last 1,000 curves stored in the control and up to 10 curves superimposed in visualizations
  • Visualization on any PC or optional WEBER touch monitor
  • Optional redundant measuring system VDI 2862, Class A
  • Digital I/O, Profibus, ProfiNet, Ethernet IP, Device-NET and Ethernet CAT
Control Systems C50S WEBER

Technical data Process controller C50S

C50S
Supply Standard 230 V, Type: IEC connection with L, N, PE, 230 V ± 10% / 50 – 60 Hz
Drives 100 / 400 / 750 Watt
Weight 20 kg
Measurements 350 / 250 / 500 mm (W / D / H)
Programs 255 programs with up to 25 individual process steps
Pictures Process controller C50S
